The Cantilever Shuttle System is a compact and ergonomic solution for Coordinate Measuring Machine (CMM) operations, offering enhanced accessibility and precision.

Features

• Compatible with standard Swiftfix kinematic plates 300 x 300 mm, 400 x 400 mm, 500 mm x 500 mm
• Load capacity up to 15 kg
• Qualification sphere mounting hole (M8 tapped) for tip qualification without removing the loading system.
• 300 mm travel allows the load/unload position to be closer to the operator
• Taper lock plunger ensures repeatable positioning while CMM inspection takes place
• High-quality linear rails ensure smooth movement of the top plate when transversing forward and backwards.
• Taper locators provide secure positioning in both extended and retracted states
• Scalloped area at the front to prevent finger trapping when sliding the top plate out
• No compressed air required. Shuttle system

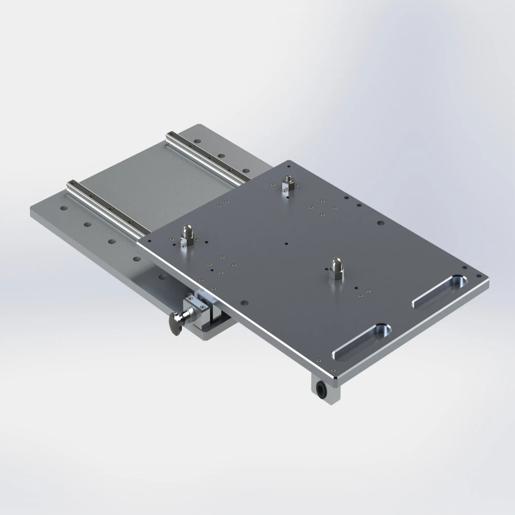

Image for illustration purpose only and may differ from the product.
