Fixtures

Kinematic Fixture Plate 300x300mm (Plain)
Kinematic Fixture Plate 300x300mm (Plain)
ID: KPP-300__300
Price:  €495.00
Quick Overview:  The plain kinematic fixture plate can be repeatedly placed in exactly the same position on the top of a pre-mounted kinematic base plate, without the need for manual alignment.
  • Plate Compatibility :  KB-250/250, KB-UNIVL
In Stock - Despatched 1-2 Days
Kinematic Fixture Plate 500x500mm (Plain)
Kinematic Fixture Plate 500x500mm (Plain)
ID: KPP-500__500
Price:  €758.00
Quick Overview:  The plain kinematic fixture plate can be repeatedly placed in exactly the same position on the top of a pre-mounted kinematic base plate, without the need for manual alignment.
  • Plate Compatibility :  KB-400/400, KB-UNIVL
In Stock - Despatched 1-2 Days
Kinematic Fixture Plate 300x300 mm (M8)
Kinematic Fixture Plate 300x300 mm (M8)
ID: KPT-300__300
Price:  €779.00
Quick Overview:  The kinematic fixture plate can be placed in exactly the same position without the need for manual alignment. It is placed on top of a pre-mounted kinematic base plate.
  • Plate Compatibility :  KB-250/250, KB-UNIVL
In Stock - Despatched 1-2 Days
Kinematic Base for Fixture Plate 500x500mm
Kinematic Base for Fixture Plate 500x500mm
ID: KB-400__400
Price:  €832.00
Quick Overview:  The kinematic base plate remains on the machine and ensures accurate, fast and highly repeatable placement of kinematic fixture plates without manual alignment.
  • Plate Compatibility :  KPP-500/500, KPT-500/500
In Stock - Despatched 1-2 Days
Universal Kinematic Fixture Base
Universal Kinematic Fixture Base
ID: KB-UNIVL
Price:  €589.00
Quick Overview:  The universal kinematic base remains on the machine and ensures accurate, highly repeatable placement of kinematic fixture plates without manual alignment. It can be used with any size of kinematic fixture plates.
  • Plate Compatibility :  KPP-300/300, KPT-300/300, KPP-400/400, KPT-400/400, KPP-500/500, KPT-500/500
In Stock - Despatched 1-2 Days
Kinematic Fixture Plate 400x400 mm (M8)
Kinematic Fixture Plate 400x400 mm (M8)
ID: KPT-400__400
Price:  €1,316.00
Quick Overview:  The kinematic fixture plate can be placed in exactly the same position without the need for manual alignment. It is placed on top of a pre-mounted kinematic base plate.
  • Plate Compatibility :  KB-300/300, KB-UNIVL
In Stock - Despatched 1-2 Days
Kinematic Base for Fixture Plate 300x300mm
Kinematic Base for Fixture Plate 300x300mm
ID: KB-250__250
Price:  €589.00
Quick Overview:  The kinematic base plate remains on the machine and ensures accurate, fast and highly repeatable placement of kinematic fixture plates without manual alignment.
  • Plate Compatibility :  KPP-300/300, KPT-300/300
In Stock - Despatched 1-2 Days
Kinematic Fixture Plate 500x500 mm (M8)
Kinematic Fixture Plate 500x500 mm (M8)
ID: KPT-500__500
Price:  €1,780.00
Quick Overview:  The kinematic fixture plate can be placed in exactly the same position without the need for manual alignment. It is placed on top of a pre-mounted kinematic base plate.
  • Plate Compatibility :  KB-400/400, KB-UNIVL
In Stock - Despatched 1-2 Days
Kinematic Base for Fixture Plate 400x400mm
Kinematic Base for Fixture Plate 400x400mm
ID: KB-300__300
Price:  €642.00
Quick Overview:  The kinematic base plate remains on the machine and ensures accurate, fast and highly repeatable placement of kinematic fixture plates without manual alignment.
  • Plate Compatibility :  KPP-400/400, KPT-400/400
In Stock - Despatched 1-2 Days
Kinematic Fixture Plate 400x400mm (Plain)
Kinematic Fixture Plate 400x400mm (Plain)
ID: KPP-400__400
Price:  €589.00
Quick Overview:  The plain kinematic fixture plate can be repeatedly placed in exactly the same position on the top of a pre-mounted kinematic base plate, without the need for manual alignment.
  • Plate Compatibility :  KB-300/300, KB-UNIVL
In Stock - Despatched 1-2 Days
Fixture Baseplate 400x400x12mm (M8)
Fixture Baseplate 400x400x12mm (M8)
ID: FX-BP400__400
Price:  €1,011.00
Quick Overview:  This fixture base plate can be connected side-by-side with other base plates with the same size. M8 holes and alpha numeric identification allowing fixtures to be re-built easily.
  • Threa:  M8
In Stock - Despatched 1-2 Days
Flexible Vice
Flexible Vice
ID: FV-SLIDE
Price:  €259.00
Quick Overview:  Highly versatile, thanks to different support elements the flexible vice can hold a wide variety of parts in position.
  • Threa:  M4
In Stock - Despatched 1-2 Days

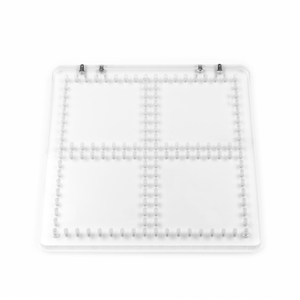

Acryl Baseplate 200x200x10mm (M4) - Cross Pattern
Acryl Baseplate 200x200x10mm (M4) - Cross Pattern
ID: FV-BP200__200C
Price:  €263.00
Quick Overview:  Acrylic, transparent grid plate with M4 holes and magnetic mounting capability. For optical measuring systems to use on multisensor CMM.
  • Threa:  M4
In Stock - Despatched 1-2 Days
Angle Block Slider (M4)
Angle Block Slider (M4)
ID: FV-ANGSLIDER
Price:  €19.00
Quick Overview:  The angle block slider enables users to position elements horizontally on the base plate.
  • Threa:  M4
In Stock - Despatched 1-2 Days
Acryl Baseplate 200x200x10mm (M4) - Full Pattern
Acryl Baseplate 200x200x10mm (M4) - Full Pattern
ID: FV-BP200__200F
Price:  €337.00
Quick Overview:  Acrylic, transparent grid plate with M4 holes and magnetic mounting capability. For optical measuring systems to use on multisensor CMM.
  • Threa:  M4
In Stock - Despatched 1-2 Days
Articulated Fixture Arm (M8)
Articulated Fixture Arm (M8)
ID: FX-ARM
Price:  €83.00
Quick Overview:  The articulated fixture arm has the flexibility to accommodate the most complex positions with only a single locking handle and is typically used with a universal clamp.
  • Threa:  M8
In Stock - Despatched 1-2 Days
Slider Block (M4)
Slider Block (M4)
ID: FV-SLIDER
Price:  €15.00
Quick Overview:  A slider block opens up a much greater choice of positions for fixtures than that offered by the standard plate.
  • Threa:  M4
In Stock - Despatched 1-2 Days
Standoff Magnet (D = 8 mm / L = 10 mm)
Standoff Magnet (D = 8 mm / L = 10 mm)
ID: FV-SO__MAG
Price:  €14.00
Quick Overview:  The standoff magnet ensures the reliable and repeatable holding of parts made from ferromagnetic metals and alloys, all while maximising accessibility.
  • Length:  10mm
  • Diameter:  8mm
In Stock - Despatched 1-2 Days
Spring Clamp (M4)
Spring Clamp (M4)
ID: FV-SPRING
Price:  €44.00
Quick Overview:  Spring Clamps are used to clamp parts with low force without obstructing the measurement access.
  • Threa:  M4
In Stock - Despatched 1-2 Days
Resting Cone (M4)
Resting Cone (M4)
ID: FV-CONE
Price:  €13.00
Quick Overview:  The M4 resting cone made of Delrin® is shaped to precisely position the part and to reduce the risk of any damage.
  • Threa:  M4
In Stock - Despatched 1-2 Days
