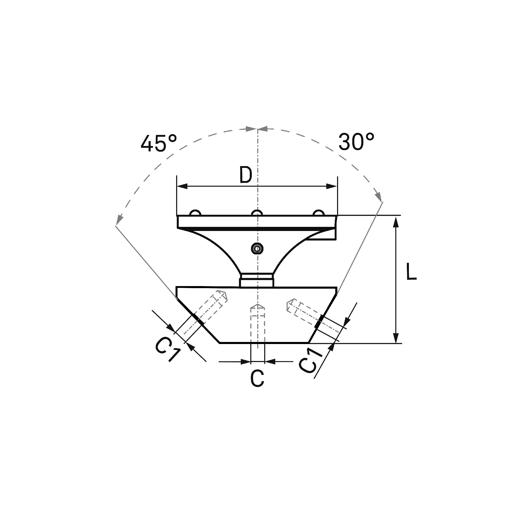

HP-S-X1C/H Stylus Module with Holder DEG30/45 (3x M3)
SKU:
M00-694-274-000
$691.00
Prices are only valid for orders placed through the web shop
Stock goods
Quick overview
Aluminium stylus module with Dispal® holder DEG30/45 for scanning probes HP-S-X1C/H (3x M3)
Added to your shopping cart.
Hexagon styli accessories enable the user to create flexible and individual probing configurations to measure complex geometries and difficult to reach characteristics.
Stylus modules are the link between sensor and stylus. They are available in different variations, for instance to minimise the number of time-intensive stylus changes.
| Device | CMM |
|---|---|
| Related Probe |
HP-S-X1C HP-S-X1H |
| Female Thread (C) | M3 |
| Female Thread (C1) | 3 x M3 |
| Material | Aluminium / Dispal® |
| Diameter (D) | 30 mm |
| Length (L) | 22 mm |
| Weight | 12.4 g |
