Tooling Ball Reflector 0.5" (TBR)
ID:
576234
$1,110.00
Prices are only valid for orders placed through the web shop
In Stock - Despatched 1-2 Days
Quick Overview
Tooling Ball Reflector 0.5" (TBR)
Added to your shopping cart.

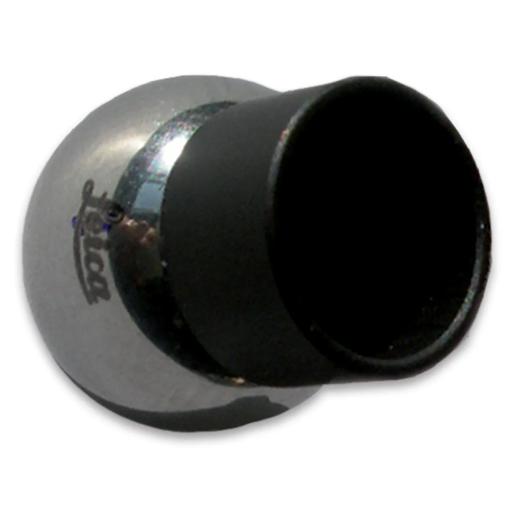

Tooling ball glass prism reflector with removable ring, protection cover for optic and certificate, in wooden box.
Radius ball: 6.35 mm: ± 0.004 mm (0.2500 in ± 0.00016 in)
Centring of optics: ± 0.01 mm (± 0.00039 in)
Shape ball: ± 0.003 mm (± 0.00012 in)
Acceptance angle: with ring ± 22°, without ring ± 50°
Material ball: Stainless steel, surface-hardened, magnetic
Weight: 7 g (0.25 oz)
| Size | 0.5" |
|---|---|
| Radius (mm) | 6.35 mm |
| Radius Tolerance (mm) | 0.004 mm |
| Radius (in) | 0.25 in |
| Radius Tolerance (in) | 0.0001 in |
| Centring of Optics (mm) | 0.01 mm |
| Centring of Optics (in) | 0.00039 in |
| Roundness (mm) | 0.006 mm |
| Roundness (in) | 0.00024 in |
| Material | Stainless steel, surface-hardened, magnetic |
| System Compatibility |
Leica Absolute Tracker AT403 Leica Absolute Tracker AT930 Leica Absolute Tracker AT960 |
| Acceptance Angle | ≤ ±22° (without ring: ≤ ±50°) |
| Weight | 7 g (0.25 oz) |
