Red Ring Reflector 0.5"
SKU:
575739
$1,670.00
Net price excluding delivery
Prices are only valid for orders placed through the web shop
Stock goods
Quick overview
Red Ring Reflector 0.5"
Added to your shopping cart.

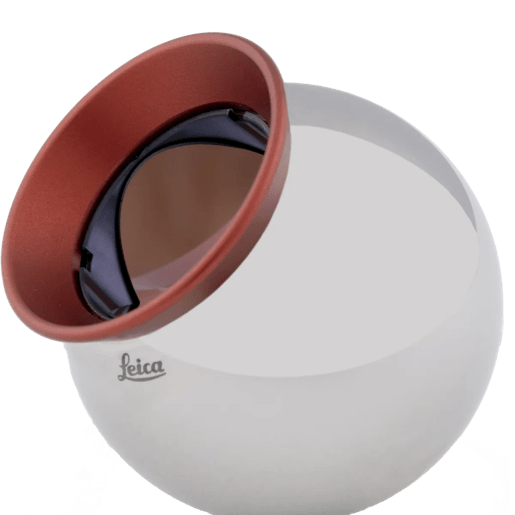

Red-Ring Reflector (RRR) 0.5", ball with hardened steel surface Corner cube reflector with removable ring, protection cover for optic and certificate, in wooden box.
Radius: 6.35 mm ± 0.0025 mm (0.250 in ± 0.0001 in)
Centring of optics: ± 0.003 mm (± 0.00012 in)
Shape ball: ≤ 0.003 mm (≤ 0.00012 in)
Acceptance angle: ±30° no limitation due to ring
Material ball: Stainless steel, surface-hardened, magnetic
Weight: 6 g (0.21 oz)
| Size | 0.5" |
|---|---|
| Radius (mm) | 6.35 mm |
| Radius Tolerance (mm) | 0.0025 mm |
| Radius (in) | 0.25 in |
| Radius Tolerance (in) | 1.0E-4 in |
| Centring of Optics (mm) | 0.003 mm |
| Centring of Optics (in) | 1.2E-4 in |
| Roundness (mm) | 0.003 mm |
| Roundness (in) | 1.2E-4 in |
| Material | Stainless steel, surface-hardened, magnetic |
| System Compatibility |
Leica Absolute Tracker AT403 Leica Absolute Tracker AT930 Leica Absolute Tracker AT960 Leica Absolute Tracker ATS600 |
| Acceptance Angle | ±30° |
| Weight | 6 g (0.21 oz) |
