Red-Ring Reflector (RRR) 7/8", 5-Pack
ID:
576313
$8,900.00
Prices are only valid for orders placed through the web shop
Out of stock - Coming soon
Quick Overview
Red-Ring Reflector (RRR) 7/8", 5-pack
Added to your shopping cart.
Red-Ring Reflector7/8"(RRR), 5-pack

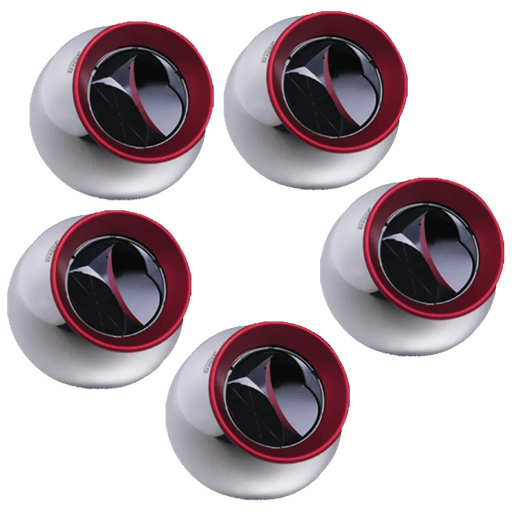

Pack of 5 corner-cube reflectors with removable ring, protective cover for optics and certificate. Delivered in wooden box.
Radius: 11.1125 mm ± 0.0025 mm (0.4375 in ± 0.0001 in)
Centring of optics: < ± 0.003 mm ( ± 0.00012 in)
Roundness (ball): ≤ 0.003 mm (≤ 0.00012 in)
Material (ball): Stainless steel, hardened, magnetic
Acceptance angle: ±30°
Weight: 35 g (1.23 oz)
Limitations due to ring: none
Compatibility: AT403, AT9x0, ATS600
| Size | 7/8" |
|---|---|
| Radius (mm) | 11.1125 mm |
| Radius Tolerance (mm) | 0.0025 mm |
| Radius (in) | 0.4375 in |
| Radius Tolerance (in) | 0.0001 in |
| Centering of Optics (mm) | 0.003 mm |
| Centering of Optics (in) | 0.00012 in |
| Roundness (mm) | 0.003 mm |
| Roundness (in) | 0.00012 in |
| System Compatibility |
Leica Absolute Tracker AT403 Leica Absolute Tracker AT930 Leica Absolute Tracker AT960 Leica Absolute Tracker ATS600 |
| Acceptance Angle | ±30°, no limitation due to ring |
| Weight | 35 g (1.23 oz) |
