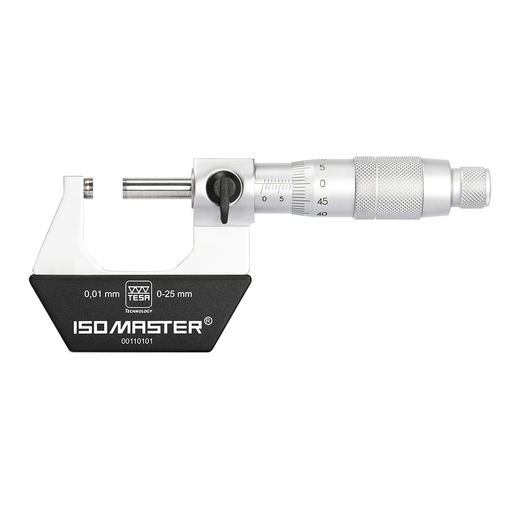

ISOMASTER Analogue Micrometer, 0 - 25 mm
ID:
00110101
zł998.76
zł812.00
Net price excluding delivery
Prices are only valid for orders placed through the web shop
In Stock - Despatched 1-2 Days
Quick Overview
Robust, analogue external micrometer with parallax. Measuring range: 0 - 25 mm
Added to your shopping cart.
Robust, analogue external micrometer with parallaxe. Measuring range: 0 - 25 mm
Delivery Contents
1x Micrometer
1x Measurement report
1x Declaration of conformity
| Product Type | External Micrometers |
|---|---|
| Measurement Technology | Analogue |
| Measuring Unit | mm |
| Measuring Range | 0 - 25 mm |
| Resolution | 0.01 mm |
| Travel / Revolution | 0.5 mm |
| Measuring Force | ≤ 10 N |
| Max. perm. Errors | 4 µm |
| Max. perm. Parallelism Error | 2 µm |
| Dimension (A) | 127 mm |
| Dimension (B) | 56 mm |
| Dimension (C) | Ø 6.5 mm |
| Dimension (D) | 21 mm |
| Standard | DIN 863 T1 / NF E 11-095 |
| Material | Inserts: Tungsten Carbide |
| Weight | 223 g |
