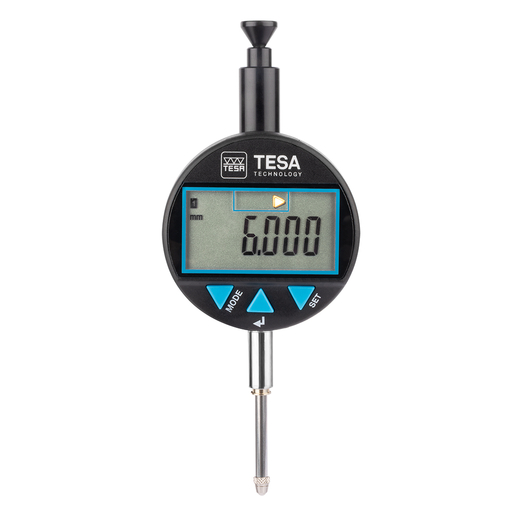

DIALTRONIC Dial Gauge, Ø60, 25 mm, 0.001 mm
ID:
01930305
zł4,729.35
zł3,845.00
Net price excluding delivery
Prices are only valid for orders placed through the web shop
In Stock - Despatched 1-2 Days
Quick Overview
Digital dial gauge Ø 60 mm, protection class IP54. Resolution: 0.001 mm / Measuring range: 25 mm
Added to your shopping cart.
Functions
- Switching of the counting direction
- Automatic sleep mode
- RS232 data output
- PRESET mode
- 2 storable references
- MAX, MIN, MAX-MIN (TIR)
- Change of resolution
- Multiplication factor
- Locking of the keys
- Storage of the measured value
- Reset of the value
- Button for recall of PRESET value
- Setting of tolerances
Delivery contents
1x Dial gauge with mounted ball insert Ø 3 mm
1x Measurement report
1x Quickstart guide
| Measurement Technology | Digital |
|---|---|
| Measuring Unit | mm / in |
| Measuring Range | 25 mm / 1 in |
| Resolution | 0.001 mm / .00005 in |
| Measuring Force | 0.65 - 1.15 N |
| MPEe, retractable plunger | 4 µm / .0002 in |
| MPEp, 1 mm | 2.6 µm / .0001 in |
| MPEr | 2 µm / .0001 in |
| Protection Class | IP54 |
| Insert Thread | M2.5 |
| Mounting shank Ø | 8 mm |
| Shockproof Mechanism | No |
| Standard |
Dimensions: EN ISO 463 Performances: Factory standard |
| Number of buttons | 3 |
| Dial | Ø 60 mm |
| Material |
Casing: Metallic Mounting Shank: Stainless steel Plunger: Stainless steel |
| Weight | 123 g |
