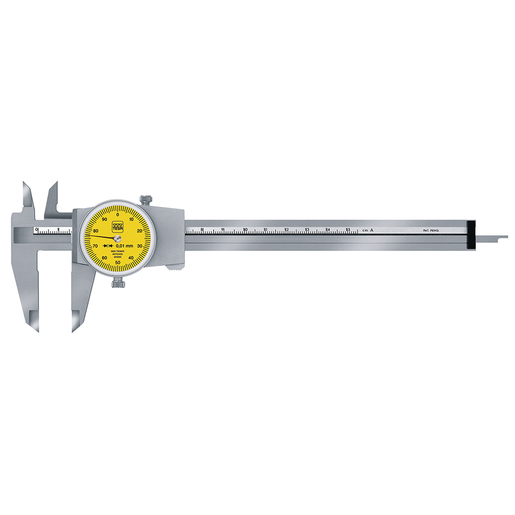

Dial Caliper, 150 mm, 0.01 mm, 1 mm/r
ID:
00510050
zł845.01
zł687.00
Net price excluding delivery
Prices are only valid for orders placed through the web shop
In Stock - Despatched 1-2 Days
Quick Overview
Dial caliper with locking screw and integrated shockproof system. Resolution: 0.01 mm / Measuring range: 0 - 150 mm
Added to your shopping cart.
Instrument
- Perfect operation of the slider for a silky-smooth operation
- Robust construction with housing and protection of the gear mechanism
- Integrated shockproof system guaranteeing longevity and stability of results over time
Measurement
- Good reading with big high-contrast dial
Delivery contents
1x Caliper
1x Measurement report
1x Declaration of conformity
| Measurement Technology | Analogue |
|---|---|
| Measuring Unit | mm |
| Measuring Range | 0 - 150 mm |
| Resolution | 0.01 mm |
| Travel / Revolution | 1 mm |
| Max. perm. Errors |
0 mm < L ≤ 100 mm: ± 20 µm 100 mm < L ≤ 300 mm: ± 30 µm |
| Thumb Roller | No |
| Shockproof Mechanism | Yes |
| Locking screw | Yes |

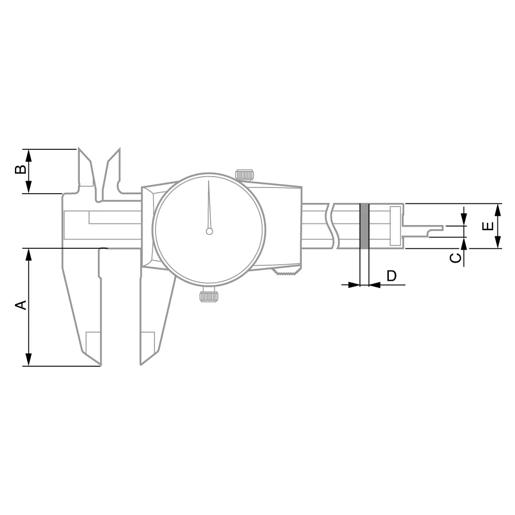

| Dimension (A) | 40 mm |
| Dimension (B) | 13 mm |
| Dimension (C) | 1.5 x 1.8 mm |
| Dimension (D) | 3.2 mm |
| Dimension (E) | 15.5 mm |
| Standard | ISO 13385-1:2019 |
| Dial | Ø 32 mm, rotatable |
| Material |
Stainless Steel, hardened Gear Mechanism: Hardened, ground steel |
| Weight | 180 g |
